JB40FSORM45 – Acoplamiento hidráulico – 40/JB40 Series
4081-2206

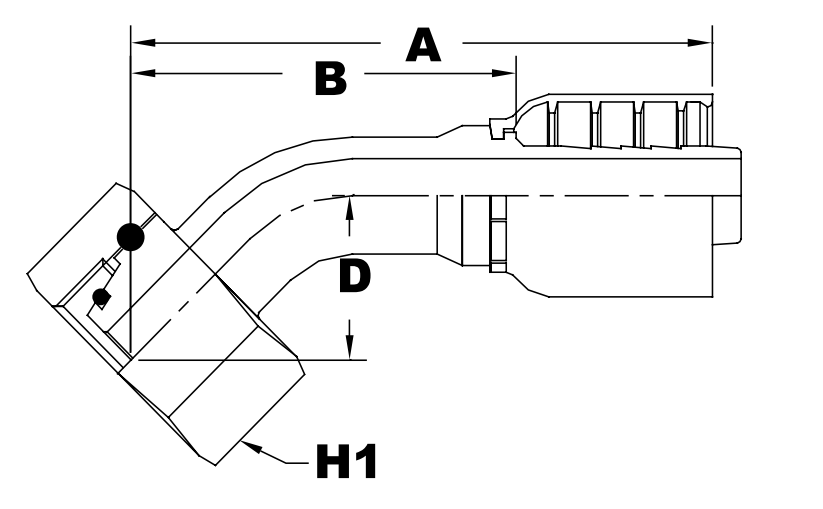

"A" Dimension Overall Length
2.99"
"A" Dimension Overall Length
76 mm
"B" Dimension Cut-Off Length (Imperial)
1.89"
"B" Dimension Cut-Off Length (Metric)
48 mm
"D" Dimension Drop (imperial)
0.91"
"D" Dimension Drop (Metric)
23 mm
Thread
M22-1.5
Hex Size (H1) (Imperial)
1.06"
Hex Size (H1) (Metric)
27 mm
Tube OD (Imperial)
0.55"
Tube OD (Metric)
14 mm
Hose ID (Imperial)
3/8"
Hose ID (Metric)
9,5 mm
Weight (Imperial)
0,4 libras
Weight (Metric)
0,18 kg
Bulk Pack
100
4081-1806
"A" Dimension Overall Length
2.99"
"A" Dimension Overall Length
76 mm
"B" Dimension Cut-Off Length (Imperial)
1.89"
"B" Dimension Cut-Off Length (Metric)
48 mm
"D" Dimension Drop (imperial)
0.91"
"D" Dimension Drop (Metric)
23 mm
Thread
M18-1.5
Hex Size (H1) (Imperial)
0.87"
Hex Size (H1) (Metric)
22 mm
Tube OD (Imperial)
0.39"
Tube OD (Metric)
10 mm
Hose ID (Imperial)
3/8"
Hose ID (Metric)
9,5 mm
Weight (Imperial)
0,33 libras
Weight (Metric)
0,15 kg
Bulk Pack
100
4081-2006
"A" Dimension Overall Length
2.99"
"A" Dimension Overall Length
76 mm
"B" Dimension Cut-Off Length (Imperial)
1.89"
"B" Dimension Cut-Off Length (Metric)
48 mm
"D" Dimension Drop (imperial)
0.91"
"D" Dimension Drop (Metric)
23 mm
Thread
M20-1.5
Hex Size (H1) (Imperial)
0.94"
Hex Size (H1) (Metric)
24 mm
Tube OD (Imperial)
0.47"
Tube OD (Metric)
12 mm
Hose ID (Imperial)
3/8"
Hose ID (Metric)
9,5 mm
Weight (Imperial)
0,37 libras
Weight (Metric)
0,17 kg
Bulk Pack
100
4081-3612
"A" Dimension Overall Length
4.92"
"A" Dimension Overall Length
125 mm
"B" Dimension Cut-Off Length (Imperial)
3.31"
"B" Dimension Cut-Off Length (Metric)
84 mm
"D" Dimension Drop (imperial)
1.46"
"D" Dimension Drop (Metric)
37 mm
Thread
M36-2.0
Hex Size (H1) (Imperial)
1.81"
Hex Size (H1) (Metric)
46 mm
Tube OD (Imperial)
0.98"
Tube OD (Metric)
25 mm
Hose ID (Imperial)
3/4"
Hose ID (Metric)
19,1 mm
Weight (Imperial)
1,19 lbs
Weight (Metric)
0,54 kg
Bulk Pack
36
4081-3010
"A" Dimension Overall Length
3.98"
"A" Dimension Overall Length
101 mm
"B" Dimension Cut-Off Length (Imperial)
2.4"
"B" Dimension Cut-Off Length (Metric)
61 mm
"D" Dimension Drop (imperial)
1.1"
"D" Dimension Drop (Metric)
28 mm
Thread
M30-2.0
Hex Size (H1) (Imperial)
1.42"
Hex Size (H1) (Metric)
36 mm
Tube OD (Imperial)
0.79"
Tube OD (Metric)
20 mm
Hose ID (Imperial)
5/8"
Hose ID (Metric)
15,9 mm
Weight (Imperial)
0,86 libras
Weight (Metric)
0,39 kg
Bulk Pack
50
4081-3012
"A" Dimension Overall Length
4.88"
"A" Dimension Overall Length
124 mm
"B" Dimension Cut-Off Length (Imperial)
3.27"
"B" Dimension Cut-Off Length (Metric)
83 mm
"D" Dimension Drop (imperial)
1.42"
"D" Dimension Drop (Metric)
36 mm
Thread
M30-2.0
Hex Size (H1) (Imperial)
1.42"
Hex Size (H1) (Metric)
36 mm
Tube OD (Imperial)
0.79"
Tube OD (Metric)
20 mm
Hose ID (Imperial)
3/4"
Hose ID (Metric)
19,1 mm
Weight (Imperial)
0,9 libras
Weight (Metric)
0,41 kg
Bulk Pack
32
4081-2408
"A" Dimension Overall Length
3.54"
"A" Dimension Overall Length
90 mm
"B" Dimension Cut-Off Length (Imperial)
2.24"
"B" Dimension Cut-Off Length (Metric)
57 mm
"D" Dimension Drop (imperial)
1.18"
"D" Dimension Drop (Metric)
30 mm
Thread
M24-1.5
Hex Size (H1) (Imperial)
1.26"
Hex Size (H1) (Metric)
32 mm
Tube OD (Imperial)
0.63"
Tube OD (Metric)
16 mm
Hose ID (Imperial)
1/2"
Hose ID (Metric)
12,7 mm
Weight (Imperial)
0,5 libras
Weight (Metric)
0,23 kg
Bulk Pack
50
4081-5224
"A" Dimension Overall Length
7.05"
"A" Dimension Overall Length
179 mm
"B" Dimension Cut-Off Length (Imperial)
4.69"
"B" Dimension Cut-Off Length (Metric)
119 mm
"D" Dimension Drop (imperial)
2.44"
"D" Dimension Drop (Metric)
62 mm
Thread
M52-2.0
Hex Size (H1) (Imperial)
2.36"
Hex Size (H1) (Metric)
60 mm
Tube OD (Imperial)
1.5"
Tube OD (Metric)
38 mm
Hose ID (Imperial)
1-1/2"
Hose ID (Metric)
38,1 mm
Weight (Imperial)
3,2 libras
Weight (Metric)
1,45 kg
Bulk Pack
6
4081-5220
"A" Dimension Overall Length
6.22"
"A" Dimension Overall Length
158 mm
"B" Dimension Cut-Off Length (Imperial)
4.37"
"B" Dimension Cut-Off Length (Metric)
111 mm
"D" Dimension Drop (imperial)
1.89"
"D" Dimension Drop (Metric)
48 mm
Thread
M52-2.0
Hex Size (H1) (Imperial)
2.36"
Hex Size (H1) (Metric)
60 mm
Tube OD (Imperial)
1.5"
Tube OD (Metric)
38 mm
Hose ID (Imperial)
1-1/4"
Hose ID (Metric)
31,8 mm
Weight (Imperial)
1,85 libras
Weight (Metric)
0,84 kg
Bulk Pack
6
4081-3616
"A" Dimension Overall Length
5.2"
"A" Dimension Overall Length
132 mm
"B" Dimension Cut-Off Length (Imperial)
3.35"
"B" Dimension Cut-Off Length (Metric)
85 mm
"D" Dimension Drop (imperial)
1.5"
"D" Dimension Drop (Metric)
38 mm
Thread
M36-2.0
Hex Size (H1) (Imperial)
1.81"
Hex Size (H1) (Metric)
46 mm
Tube OD (Imperial)
0.98"
Tube OD (Metric)
25 mm
Hose ID (Imperial)
1"
Hose ID (Metric)
25,4 mm
Weight (Imperial)
1,43 lbs
Weight (Metric)
0,65 kg
Bulk Pack
6
4081-4216
"A" Dimension Overall Length
5.2"
"A" Dimension Overall Length
132 mm
"B" Dimension Cut-Off Length (Imperial)
3.35"
"B" Dimension Cut-Off Length (Metric)
85 mm
"D" Dimension Drop (imperial)
1.5"
"D" Dimension Drop (Metric)
38 mm
Thread
M42-2.0
Hex Size (H1) (Imperial)
1.97"
Hex Size (H1) (Metric)
50 mm
Tube OD (Imperial)
1.18"
Tube OD (Metric)
30 mm
Hose ID (Imperial)
1"
Hose ID (Metric)
25,4 mm
Weight (Imperial)
1,57 lbs
Weight (Metric)
0,71 kg
Bulk Pack
6
