1202-2020 – JB12FS45 – Hydraulic Coupling – 12/JB12
{acf_variant__temp_table}
Parent Product
Series
Part Number
1202-2020
UPC
JB12FS45-20-20

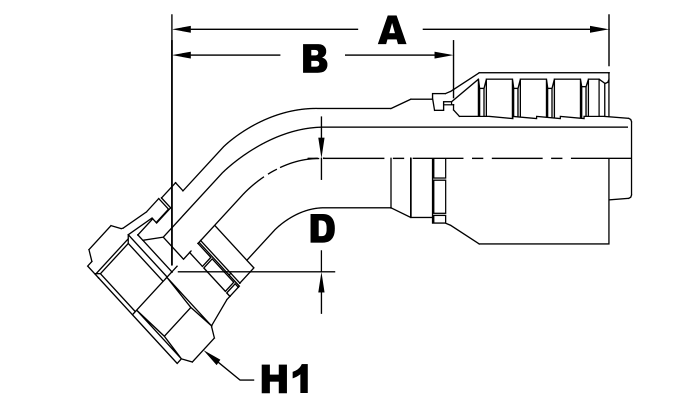

"A" Dimension Overall Length
5.91"
"A" Dimension Overall Length
150 mm
"B" Dimension Cut-Off Length (Imperial)
4.06"
"B" Dimension Cut-Off Length (Metric)
103 mm
"D" Dimension Drop (imperial)
1.57"
"D" Dimension Drop (Metric)
40 mm
Thread
1-5/8-12
Hex Size (H1) (Imperial)
2"
Hex Size (H1) (Metric)
50.8 mm
Hose ID (Imperial)
1-1/4"
Hose ID (Metric)
31.8 mm
Weight (Imperial)
2.2 lbs
Weight (Metric)
1 kg
Bulk Pack
15
