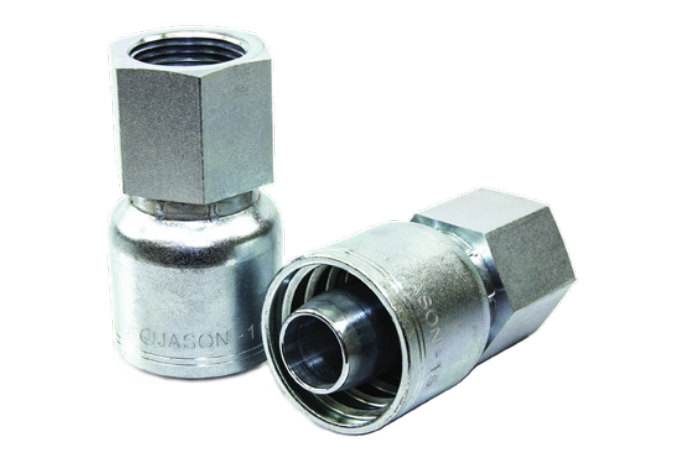

JB12FP – Hydraulic Coupling – 12/JB12

1215 series jb12fp series female pipe rigid nptf

    Series Number

    1215

    Industries

    Select up to five items from the table below to compare or request a quote.

    Product Sizes

    Request For Quote

    Item # 1215-0404

    "A" Dimension Overall Length

    1.74"

    "A" Dimension Overall Length

    44.3 mm

    "B" Dimension Cut-Off Length (Imperial)

    0.93"

    "B" Dimension Cut-Off Length (Metric)

    23.5 mm

    Thread

    1/4-18

    Hex Size (H1) (Imperial)

    0.75"

    Hex Size (H1) (Metric)

    19 mm

    Hose ID (Imperial)

    1/4"

    Hose ID (Metric)

    6.4 mm

    Weight (Imperial)

    0.14 lbs

    Weight (Metric)

    0.06 kg

    Bulk Pack

    250

    Item # 1215-0406

    "A" Dimension Overall Length

    1.9"

    "A" Dimension Overall Length

    48.3 mm

    "B" Dimension Cut-Off Length (Imperial)

    1.08"

    "B" Dimension Cut-Off Length (Metric)

    27.5 mm

    Thread

    1/4-18

    Hex Size (H1) (Imperial)

    0.87"

    Hex Size (H1) (Metric)

    22 mm

    Hose ID (Imperial)

    3/8"

    Hose ID (Metric)

    9.5 mm

    Weight (Imperial)

    0.19 lbs

    Weight (Metric)

    0.09 kg

    Bulk Pack

    180

    Item # 1215-0604

    "A" Dimension Overall Length

    1.90"

    "A" Dimension Overall Length

    48.3 mm

    "B" Dimension Cut-Off Length (Imperial)

    1.08"

    "B" Dimension Cut-Off Length (Metric)

    27.5 mm

    Thread

    3/8-18

    Hex Size (H1) (Imperial)

    0.87"

    Hex Size (H1) (Metric)

    22 mm

    Hose ID (Imperial)

    1/4"

    Hose ID (Metric)

    6.4 mm

    Weight (Imperial)

    0.13 lbs

    Weight (Metric)

    0.06 kg

    Bulk Pack

    200

    Item # 1215-0606

    "A" Dimension Overall Length

    2.17"

    "A" Dimension Overall Length

    55 mm

    "B" Dimension Cut-Off Length (Imperial)

    1.10"

    "B" Dimension Cut-Off Length (Metric)

    28 mm

    Thread

    3/8-18

    Hex Size (H1) (Imperial)

    0.87"

    Hex Size (H1) (Metric)

    22 mm

    Hose ID (Imperial)

    3/8"

    Hose ID (Metric)

    9.5 mm

    Weight (Imperial)

    0.21 lbs

    Weight (Metric)

    0.10 kg

    Bulk Pack

    130

    Item # 1215-0808

    "A" Dimension Overall Length

    2.5"

    "A" Dimension Overall Length

    63.5 mm

    "B" Dimension Cut-Off Length (Imperial)

    1.24"

    "B" Dimension Cut-Off Length (Metric)

    31.5 mm

    Thread

    1/2-14

    Hex Size (H1) (Imperial)

    1.06"

    Hex Size (H1) (Metric)

    27 mm

    Hose ID (Imperial)

    1/2"

    Hose ID (Metric)

    12.7 mm

    Weight (Imperial)

    0.32 lbs

    Weight (Metric)

    0.15 kg

    Bulk Pack

    100

    Item # 1215-1212

    "A" Dimension Overall Length

    2.93"

    "A" Dimension Overall Length

    74.3 mm

    "B" Dimension Cut-Off Length (Imperial)

    1.38"

    "B" Dimension Cut-Off Length (Metric)

    35 mm

    Thread

    3/4-14

    Hex Size (H1) (Imperial)

    1.42"

    Hex Size (H1) (Metric)

    36 mm

    Hose ID (Imperial)

    3/4"

    Hose ID (Metric)

    19.1 mm

    Weight (Imperial)

    0.65 lbs

    Weight (Metric)

    0.30 kg

    Bulk Pack

    50

    Item # 1215-1616

    "A" Dimension Overall Length

    3.48"

    "A" Dimension Overall Length

    88.5 mm

    "B" Dimension Cut-Off Length (Imperial)

    1.73"

    "B" Dimension Cut-Off Length (Metric)

    44 mm

    Thread

    1-11.5

    Hex Size (H1) (Imperial)

    1.61"

    Hex Size (H1) (Metric)

    41 mm

    Hose ID (Imperial)

    1"

    Hose ID (Metric)

    25.4 mm

    Weight (Imperial)

    1.01 lbs

    Weight (Metric)

    0.46 kg

    Bulk Pack

    36

    1215 series jb12fp series female pipe rigid nptf

    JB12FP – Hydraulic Coupling – 12/JB12

    Item #Dash SizeID (inch)ID (mm)OD (inch)OD (mm)Ply ReinforcementWP PSIBurst PressureVacuumBend RadiusWeightLength
    1215-04040.14 lbs
    1215-04060.19 lbs
    1215-06040.13 lbs
    1215-06060.21 lbs
    1215-08080.32 lbs
    1215-12120.65 lbs
    1215-16161.01 lbs
